GENIE WIRELESS SYSTEM

Internal antennas and environmental sealing
Connecting GENIE IP devices (Repeater, Key Panel & IP Beltpack)
6 x RA100DW per BS1000, 10 Repeater connection per RA100DW
Additional 10 Full-duplex Talk channels per device with unlimited Listen channels
Up to 128 Wireless Beltpacks or Receivers connections
48V DC, PoE OUT x 2, PoE IN x 1

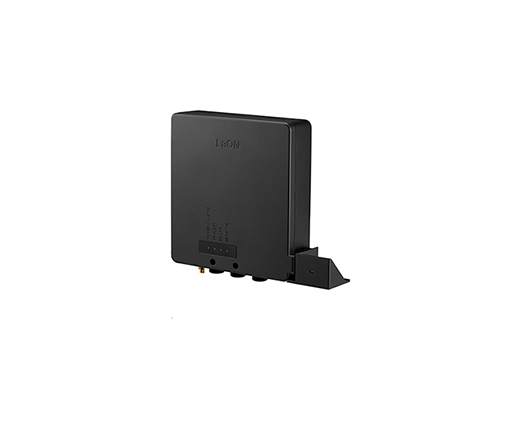

[RA100DW with a defaulted bracket]

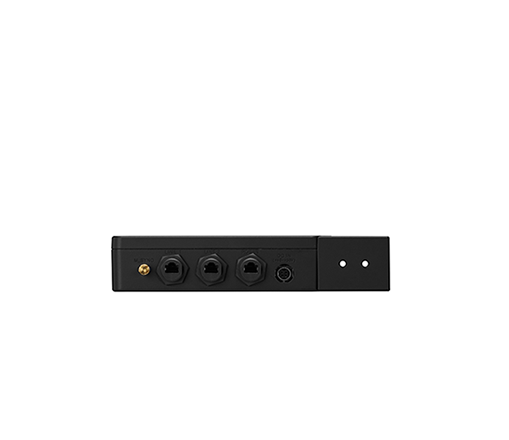

[RA100DW bottom]

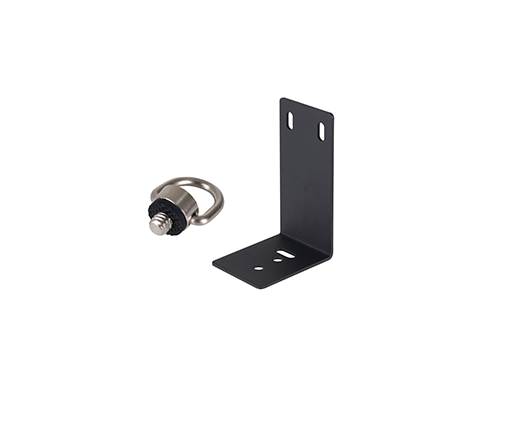

[Bracket BRK1000]

RF Frequency	Use 20Mhz channels within the 5GHz U-NII band from 5180 - 5845MHz depending on regions
Antenna	Internal
RF Modulation	QPSK
Beltpacks per Remote Antenna	128 Beltpacks can be connected and supports additional 10 Talk paths and 128 Listen paths.
PoE Input	RJ-45 Connector, 100Mbps Standard PoE specification
PoE Line1, PoE Line2(Daisy-chain)	Two RJ-45 Connectors, 100Mbps Standard PoE specification
Power Connector	M12 04pin (Female)
Power Consumption	Max. 8W
Power Supply	Consumption: 8 watts 48-56VDC input, PoE input The external PSU provides 48VDC 2.5A and at its input takes 100-240VAC, 47-63Hz.
Operating Temperature	0°C to 50°C (32°F to 122°F)
Dimensions	7.48W x 1.96D x 7.87H inch (19W x 5D x 20H cm) without bracket
Weight	1.58 lb (720g)

Remote Antenna with external antennas
Connecting GENIE IP devices (Repeater, Key Panel & IP Beltpack)
6 x RA100 per BS1000, 10 x RBS85 Repeaters per RA100
Additional 10 Full-duplex Talk channels per device with unlimited Listen channels
Up to 128 Wireless Beltpacks or Receivers connections
PoE IN x 1

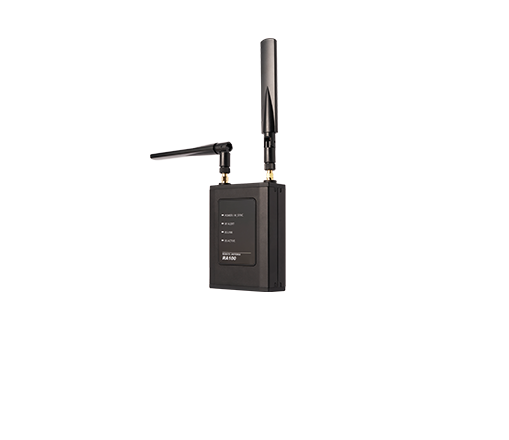

[RA100 front]

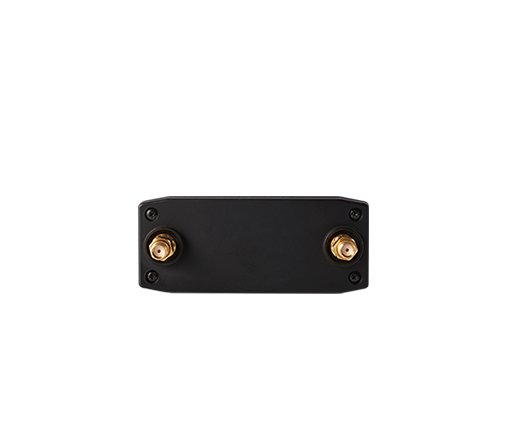

[RA100 upper]

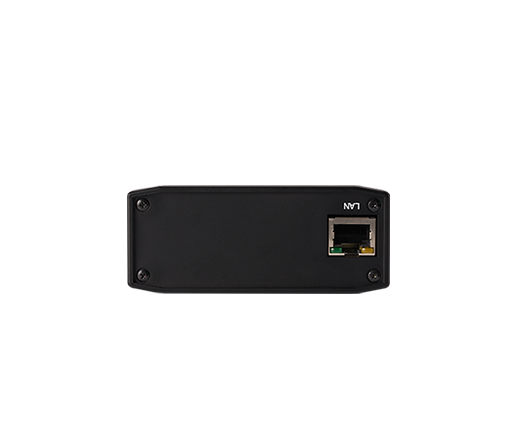

[RA100 bottom]

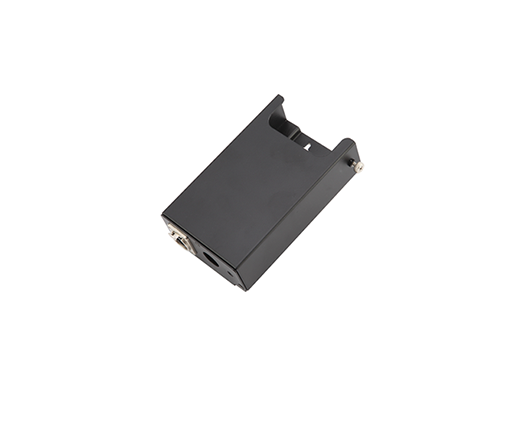

[RA100 holder]

RF Frequency	Use 20Mhz channels within the 5GHz U-NII band from 5180 - 5845MHz depending on regions
Antenna	External 1/2 -wave dipole, SMA connector
RF Modulation	QPSK
Beltpacks per Base Station	128 Beltpacks can be connected and supports additional 10 Talk paths and 128 Listen paths.
Power Supply	Consumption: 6 watts RJ-45 Connector, 100Mbps Standard PoE specification
Operating Temperature	0°C to 50°C (32° F to 122° F)
Dimensions	3.46W x 1.47D x 4.80H inch (8.8W x 3.74D x 12.2H cm) without RS holder kit
Weight	1.01 lb (460g with Antennas)

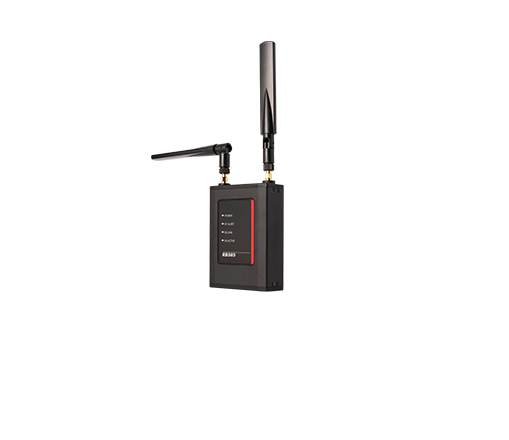

[RBS85 Front]

[RBS85 Upper]

[RBS85 Bottom]

[Optional Holder RHD1000 ]

RF Frequency	Use 20Mhz channels within the 5GHz U-NII band from 5180 - 5845MHz depending on regions
Antenna	External 1/2 -wave dipole, SMA connector
RF Modulation	QPSK
Beltpacks per Base Station	128 Beltpacks can be connected, and supports 10 Talk and 128 Listen paths with one Remote Antenna.
Power Supply	Consumption: 6 watts RJ-45 Connector, 100Mbps Standard PoE specification
Operating Temperature	0°C to 50°C (32° F to 122° F)
Dimensions	3.46W x 1.47D x 4.80H inch (8.8W x 3.74D x 12.2H cm) without RS holder kit
Weight	1.01 lb (460g with Antennas)
