ACCESSORIES

19” cascade kit

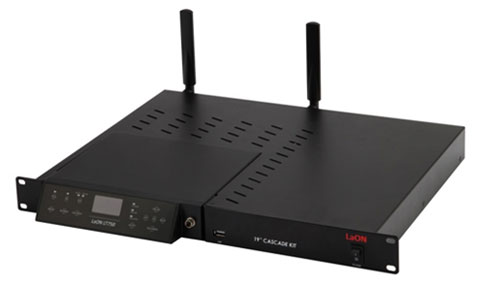

19” Cascade kit ‘BSCCK100’ assembled with the Base Station_Front
[19” Cascade kit ‘BSCCK100’ assembled with the Base Station_Front]

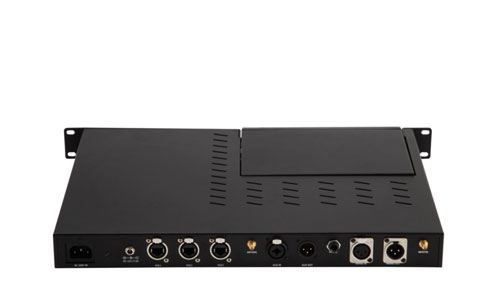

19” Cascade kit ‘BSCCK100’ assembled with the Base Station_Rear
[19” Cascade kit ‘BSCCK100’ assembled with the Base Station_Rear]

The Base Station, BS750 and BS550 can be docked to the 19” cascade kit. Locking power connector, 3 Pin XLR connector for
4-Wire ports and AUX I/O ports, ‘Push-Pull Locking’ type EtherCON connectors for three(3) PoE Ports are provided on the rear
panel of the cascade kit.

  • BS750/BS550 installation kit that fits for 19” rack
  • One(1) PoE Hub inclusive (AC100-240V power in)
  • Neutrik connector for LAN RJ-45 Connector (x 3)
  • Neutrik connector for 4-Wire connector (female & male)
  • Neutrik Auxiliary In/Out connectors
  • Power toggle switch on the front panel
  • Phone jack for 8Ω Speaker output (1W into 8Ω)
  • Antenna connector (TX, RX) on the rear and front panel: external 1/2 -wave dipole, SMA connector
  • Power: 100-240VAC, 47-63Hz, 11.4-12.6VDC
  • DC power input jack: Switchcraft 722RA
  • DC power plug: Switchcraft S760 2.1mm x 5.5mm
  • Dimensions: 482mmx321.2mmx44mm
  • Weight: 4754g with PoE Hub and without Base Station
