Boundaryless Intercom communications

LaON, the INTERCOMmunication-maker

GENIE WIRELESS SYSTEM

Wireless Beltpack | BP850, BP851

Product highlights

  • 5 Group Conference channels
  • BP850 – 2 Groups simultaneous communication with 2 Keys
  • BP851 – 4 Groups simultaneous communication with 2 Keys
  • Beltpack in Master Mode – Communications without a Base Station
  • Pairing with 5 Base and a Base selection from the Beltpack’s screen
  • Call tone, Key lock
  • Ni-MH rechargeable batteries or AA Alkaline batteries

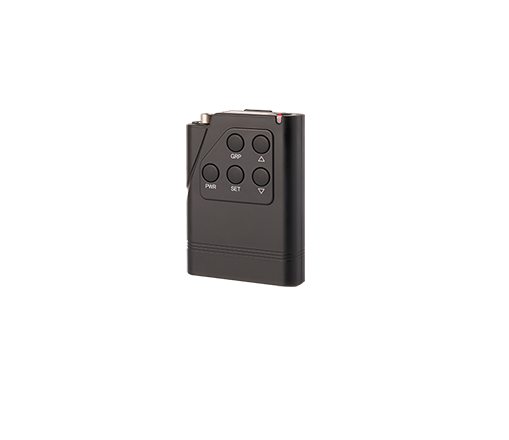

BP850/851 Front

[BP850/851 Front]

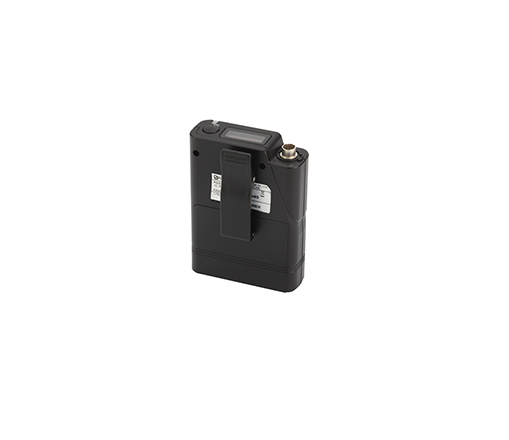

BP850/851 Rear

[BP850/851 Rear]

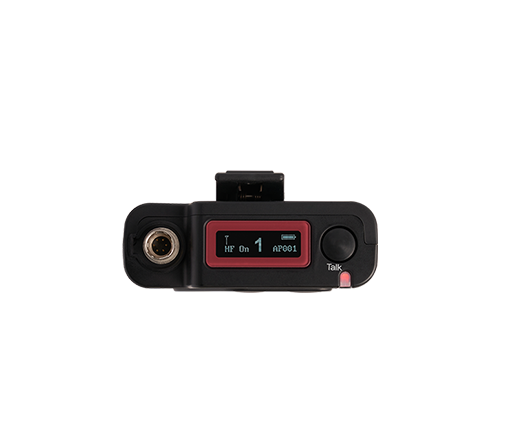

BP850/851 Upper

[BP850/851 Upper]

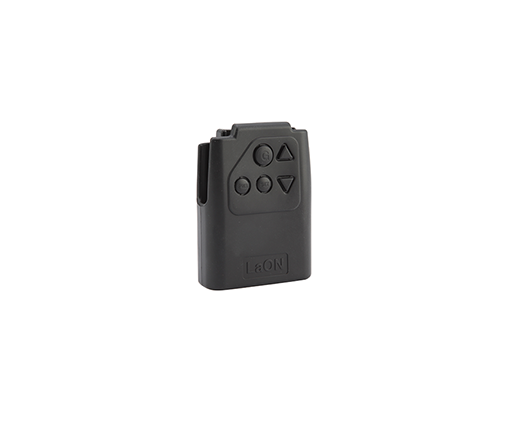

BPPCH100 Silicon Pouch

[BPPCH100 Silicon Pouch]

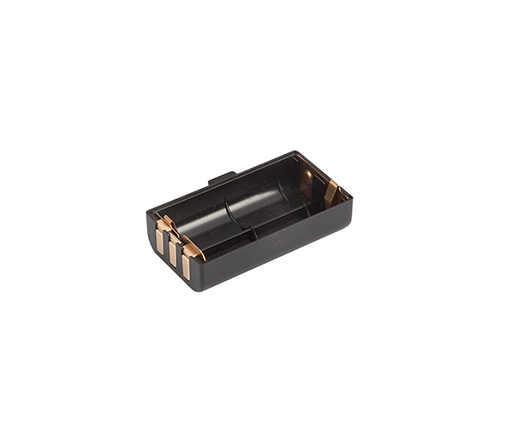

Battery sled for AA Alkaline battery

[Battery sled for AA Alkaline battery]

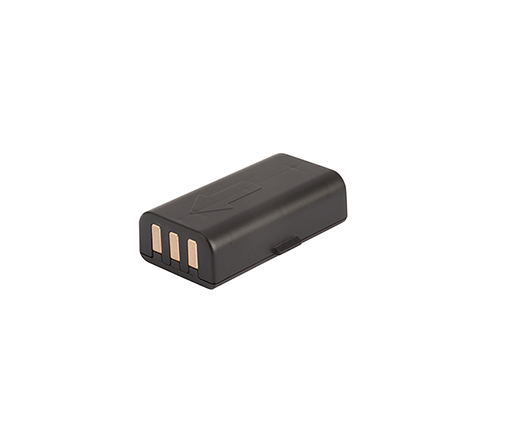

BAT50 Rechargeable Battery

[BAT50 Rechargeable Battery]

리소스 다운받기
Specification sheet
RF Frequency Use 20Mhz channels within the 5GHz U-NII band from 5180 - 5845MHz depending on regions
Antenna Internal
RF Modulation QPSK
Master Belt Pack mode 128 Beltpacks can be paired with a Master Beltpack. It also supports four Talk and 128 Listen paths at the same time. Including one Master Beltpack, five Talk paths are provided. One group channel is available for the Master Beltpack mode.
Genie group channels
(Individual level control)		 Five(5) conference channels
BP850: Two simultaneous Genie group channels or five selectable Genie group channels
BP851: Four simultaneous Genie group channels or five selectable Genie group channels
Audio bandwidth 200 Hz to 7.2 kHz
Headset output 250mW into 32 Ohm
Headset Dynamic or Electret, 6-pin mini-DIN male
Latency One-way system latency less than 23ms direct
Communication Security 256 bits key AES level 3 Encryption
Display OLED
Button Push buttons
Battery Requirement 2.4V 2450mAh Rechargeable NiMH Battery or Two AA size 1.5V alkaline batteries.
Rechargeable Battery life Approximately 9 hours
Operating Temperature 0°C to 50°C (32°F to 122°F)
Dimensions 2.89W x 0.92D x 3.83H inch (7.35W x 2.35D x 9.73H cm) without Belt Clip
Weight 0.45 lb (202g) with battery / 0.29 lb (133g) without battery
