Boundaryless Intercom communications
LaON, the INTERCOMmunication-maker
Boundaryless Intercom communications
LaON, the INTERCOMmunication-maker

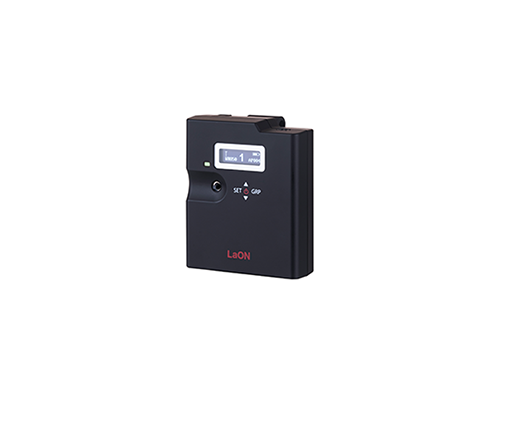

[WR850 Front]
[LME-880 Earphone]
[Battery sled for AA Alkaline battery]
[BAT50 Rechargeable Battery]
| RF Frequency | Use 20Mhz channels within the 5GHz U-NII band from 5180 - 5845MHz depending on regions |
|---|---|
| Antenna | Internal |
| Master Belt Pack mode | 128 Beltpacks can be paired with a Master Beltpack. It also supports four Talk and 128 Listen paths at the same time. Including one Master Beltpack, five Talk paths are provided. One group channel is available for the Master Beltpack mode. |
| Genie group channels | Five(5) conference channels |
| Number of listen paths(Individual level control) | Two simultaneous listen paths or five selectable paths |
| Audio bandwidth | 200 Hz to 7.2 kHz |
| Earphone output | Max 300mW into 32 Ohm |
| Earphone | 3.5 mm TRRS plug |
| Latency | One-way system latency less than 23ms direct |
| Communication Security | 256 bits key AES level 3 Encryption |
| Display | OLED |
| Button | 5 positions, Navigation switch |
| Battery Requirement | 2.4V 2450mAh Rechargeable NiMH Battery, Two AA size 1.5V alkaline (or Lithium-ion) batteries |
| Rechargeable Battery life | Approximately 12 hours with BAT50 and 8 hours with Alkaline batteries |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Dimensions | 2.67W x 0.88D x 3.18H inch (6.8W x 2.25D x 8.1H cm) without Belt Clip |
| Weight | 0.33 lb (154g) with battery / 0.18 lb (82g) without battery |
| Types | Single Earphone | |
|---|---|---|
| Earphone | Impedance | 32 Ohms |
| Rated Input power | 10mW | |
| Max Input power | 300mW | |
| Sensitivity | 98±3dB@1KHZ 1mW | |
| Frequency Response | 200Hz~4Khz | |
| Connector | 3.5mm TRRS plug | |
| Cable | 1300mm | |
| Weight | 0.05 lb (24.5g) | |
