LT SERIES WIRELESS INTERCOM

LT150 Mobile system

Wired-like audio clarity with up to 7.2KHz Audio Frequency
Provides the equivalent audio quality and wireless coverage to Genie Wireless intercom
RF frequency setting either for an automatic scanning or specific RF channel
Less than 23ms low latency
Five(5) full duplex audio channels with two(2) group channels
Up to 128 Belt Pack or Wireless Receiver connections
Any one Belt Pack in master mode
Mobile Station that can be connected with BP150, BP750, BP850 Belt Packs and WR850 WirelessIFB Receiver
AUX I/O interface
Mobile Station in Belt Pack mode
Perfect for remote broadcast, production and industrial usage

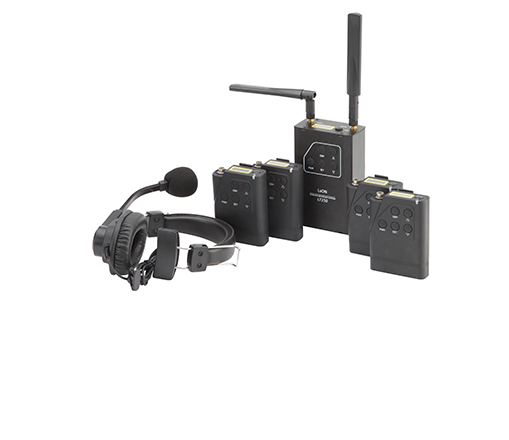

[LT150 Mobile System]

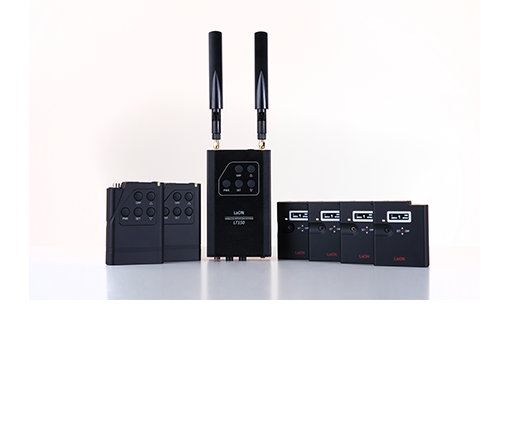

[LT150 system with IFB Receiver]

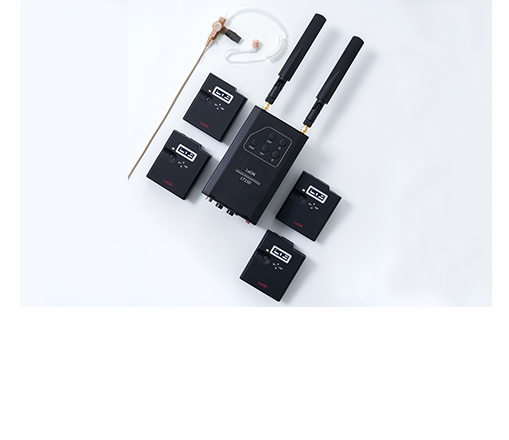

[MS150 Mobile Station with IFB Receiver]

System highlights MS150 Mobile Station BP150 Belt Pack

System highlights

LaON’s patent-technology base digital wireless intercom system offers the best audio quality with an excellent clarity by using worldwide license free 5GHz UNII band and frequency interference avoidance technologies. It guarantees the system stability even in the large congested site environments where various A/V and wireless equipment are co-located. With LT150 system’s Mobile Station MS150, users can install the Station at the fixed place or use in mobile. In addition, external devices such as a speaker and microphone can be connected with the Mobile Station through Auxiliary In/Out interface. The Mobile Station can be operated with WR850 wireless IFB receiver as well as BP150, BP750 and BP850 wireless Belt Packs. It also can be working in a Belt Pack mode for the LT750’s Base Station BS750 and the Auxiliary In/Out activation mode is still available when it is in a Belt Pack mode. LT150 Mobile System provides the equivalent audio quality and wireless performance to the highest range system, Genie.

Operates in license-free 5GHz frequency: where there are less traffics and interferences with approximately 29 RF channels worldwide.
RF frequency setting: Users can easily set to fix out with a specific RF channel or for automatic scanning with a clear OLED display on the MS150 Mobile Station.
Industry top level best-in-class audio performance with low latency: 23ms low latency level and up to 7.2KHz audio frequency guarantee a high quality audio performance. LT150 system is perfectly tuned professional wireless intercom system that fits to use in various loud and congested site environments.
Two(2) communication group channel: Two(2) group communication channels can be allocated for both of Mobile Station and each Belt Pack.
Five(5) full-duplex listen & talk communication channel (1 MS + 5 BPs): Five(5) full-duplex audio channels are offered with one (1) Mobile Station.
One hundred and twenty eight(128) Belt Pack or IFB connection: One hundred and twenty eight (128) Belt Packs or Wireless Receiver can be registered into a Mobile Station.
Belt Pack in master mode: Any one(1) of the Belt Packs can be working as a master where there is no Mobile Station or the Mobile Station is located far from the coverage.
Auxiliary I/O interfaces: Auxiliary Input/Output ports are provided to secure seamless connections with wired intercom systems, external audio devices and etc.
Compact design: Comfortable headset and compact Belt Pack with internal antenna support high wearability with mobility even at the tough broadcasting or live event sites.
Various options on battery: Either LaON provided rechargeable battery or AA type Alkaline battery with LaON provided designated battery sled can be used for supplying power to the Belt Pack. Also, non-LaON provided rechargeable battery can be used with the battery sled.
Industry top level security with AES 256bit level 3 encryption: AES 256bit Level 3, the top level encryption technology is applied to secure confidential communications.
Efficient 7 ports or 8 ports charger: With 7 ports charger, there are five (5) bays for charging the Belt Pack batteries which are equipped in the Belt Packs and two (2) bays for charging the Belt Pack batteries which are separated from the Belt Packs. Two (2) of them are for dual use for charging Mobile Station’s batteries.

MS150 Mobile Station

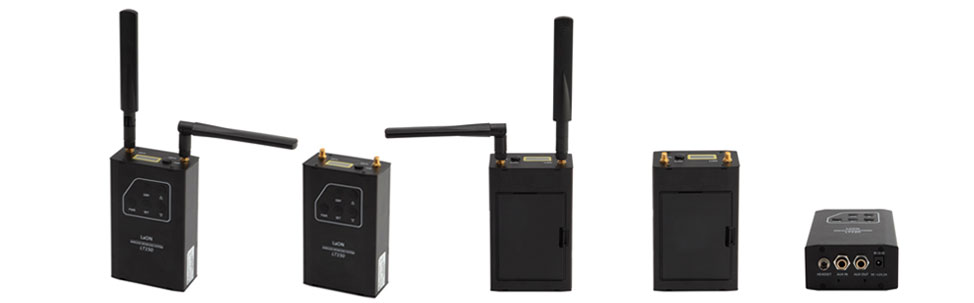

[Mobile Station MS150_Front , Rear & Bottom]

LT150 Mobile system station
Operates in channel-rich 5GHz UNII band
A RF channel can be fixed out by a user friendly screen menu or scanned automatically
AUX I/O(x1) interface
128 Belt Pack or Wireless IFB Receiver connections
Five(5) full-duplex audio communication channel
Two(2) group communication channel
Mobile Station in Belt Pack mode

Specification sheet

RF Frequency:	UNII band: 5.16GHz~5.34GHz, 5.48GHz~5.70GHz, 5.745GHz~5.865GHz
Antenna Connector Type:	External 1/2 -wave dipole, SMA connector

Transmitter

Type:	Frequency/Time Diversity
Transmit Power:	17dBm(50mW) @antenna port
Modulation Type:	QPSK
Frequency Stability:	± 2ppm

Receiver

Type:	Antenna/Frequency/Time Diversity
RF Sensitivity:	-85dBm for 5 BER
Frequency Stability:	± 2ppm

Belt Packs per Base station:	Inherently, 128 Belt Packs or Wireless IFB Receiver can be paired up, and four (4) Belt Packs operating in full-duplex (talk/listen) at the same time while five (5) full-duplex channel is provided including the Mobile Station.
Audio Communication Group:	Two (2)
Audio Frequency Response:	200 Hz to 7.2 kHz
Headset output:	400mW into 32 Ohm
Microphone Type:	Dynamic or Electret
Headset Connector:	6-pin mini-DIN male
Latency:	One-way system latency less than 23ms direct
Communication Security:	256 bits key AES level 3 Encryption
Auxiliary Input:	Phone Jack (6.3Φ), 600Ω balanced, level adjustable
Auxiliary output:	Phone Jack (6.3Φ), 600Ω balanced, level adjustable
Front Panel Display:	OLED 128 x 34 Resolutions
Front Panel Button:	Push buttons

Battery Requirement:	7.2V 2450mAh Rechargeable NiMH Battery or Six AA size 1.5V alkaline batteries
Battery life:	Twelve (12) hours in full duplex mode and Auxiliary Off mode
Battery life:	Six (6) hours in full duplex duplex and Auxiliary On mode
Power Input:	100-240VAC, 47-63Hz, 11.4-12.6VDC
Operating Temperature:	0°C to 50°C (32°F to 122°F)
Dimensions:	88.4 X 143 X 45.9 mm (WXHXD) (3.48 X 5.63 X 1.80 inch),
Weight:	1.344 lbs ( 610 g) with battery / 0.881 lbs ( 400 g) without battery

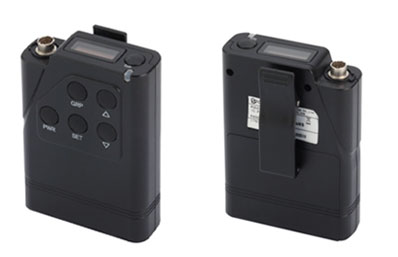

BP150 Belt Pack

LT150 Mobile system Belt Pack
Belt Pack in master mode
Key lock
Two(2) group communication channel (ISO)
Low cut level adjustment
Hands-off sensibility level adjustment
Either rechargeable battery or AA type alkaline batteries (x2) with a designated battery sled can be used
Compact and light pack

Specification sheet

RF Frequency:	UNII band: 5.16GHz~5.34GHz, 5.48GHz~5.70GHz, 5.745GHz~5.865GHz
Antenna Connector Type:	Internal

Transmitter

Type:	Antenna/Frequency/Time Diversity
Transmit Power:	17dBm(50mW) @antenna port
Modulation Type:	QPSK
Frequency Stability:	± 2ppm

Receiver

Type:	Antenna/Frequency/Time Diversity
RF Sensitivity:	-85dBm for 5 BER
Frequency Stability:	± 2ppm

Master Belt Pack Function:	Inherently, 128 Belt Packs or Wireless IFB Receiver can be paired up, and four (4) Belt Packs operating in full-duplex (talk/listen) at the same time while five (5) full-duplex channel is provided including the Master Belt Pack. Single communication group channel is assigned to the Master Belt Pack.
Audio Communication Group:	Two (2)
Audio Frequency Response :	200 Hz to 7.2 kHz
Headset output:	400mW into 32 Ohm
Microphone Type:	Dynamic or Electret
Headset Connector:	6-pin mini-DIN male
Latency:	One-way system latency less than 23ms direct
Communication Security:	256 bits key AES level 3 Encryption
Display:	OLED 128 x 32 Resolutions
Button:	Push buttons

Battery Requirement:	2.4V 2450mAh Rechargeable NiMH Battery or Two AA size 1.5V alkaline batteries
Rechargeable Battery life:	Nine (9) hours in full duplex mode
Operating Temperature:	0°C to 50°C (32°F to 122°F)
Dimensions:	2.89W x 0.92L x 3.83H inch (7.35W x 2.35L x 9.73H cm) without belt clip
Weight:	0.445 lbs (202g) with battery / 0.29 lbs (133g) without battery
